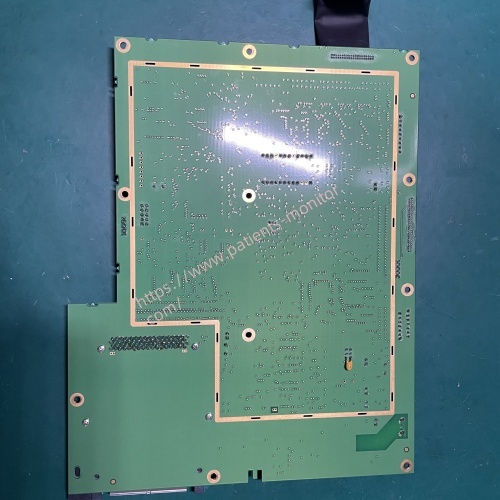

Innomed Cardio-Aid 200-B Defibrillator Motherboard Main Board PROCESSOR CA200 39121-D

Innomed Cardio-Aid 200-B Defibrillator Motherboard Main Board

PROCESSOR CA200 39121-D

Brief Introduction of Innomed Cardio-Aid 200-B Defibrillator Motherboard Main Board PROCESSOR CA200 39121-D

Innomed Cardio-Aid 200-B Defibrillator Motherboard Main Board PROCESSOR CA200 39121-D are its core components. It is the central control unit of the defibrillator, responsible for processing data from sensors, user input and external devices, and coordinating the operation of the entire system. It usually contains key components such as microprocessors, memory, and interface circuits.

DEFI Processor Board Adjustment and Testing.

The energy levels in the discharge sequence must be calibrated via software. A series of defibrillation shocks are delivered to an externally calibrated energy meter, such as the Metron QA 45, and the actual values/displayed readings are entered manually via the service menu. The CPU system is then aware of the energy selected and delivered and can calculate any voltage changes required to achieve the correct energy. Calibration is performed at 50 Joules and 360 Joules with a 50 Ohm load.

IMPORTANT!

The energy discharge must be performed immediately after the defibrillator enters the ready mode.

Specification of Innomed Cardio-Aid 200-B Defibrillator Motherboard Main Board PROCESSOR CA200 39121-D

Replacing the Processor board

The processor board is located on the metal frame behind the display.

1. Place the Cardio-Aid® chassis in “Open Service Position”.

2. Disconnect all cables connected to the Processor board.

3. Remove the eleven Torx screws (3x6) on the processor board.

4. Remove the board

Thank you so much for your attention .If you're interested in Innomed Cardio-Aid 200-B Defibrillator Motherboard Main Board PROCESSOR CA200 39121-D,feel free to contact us .Thank you .
