Mindray N1 Patient Monitor Dock Docking Station PN 115-051228-00 PN 115-051232-00
► Brief Introduction
The Dock is used to connect the N1 or Modular Rack to provide power, charge the installed battery, and support connection to an external display, USB drive, network cables, and the BeneVision N series patient monitors.

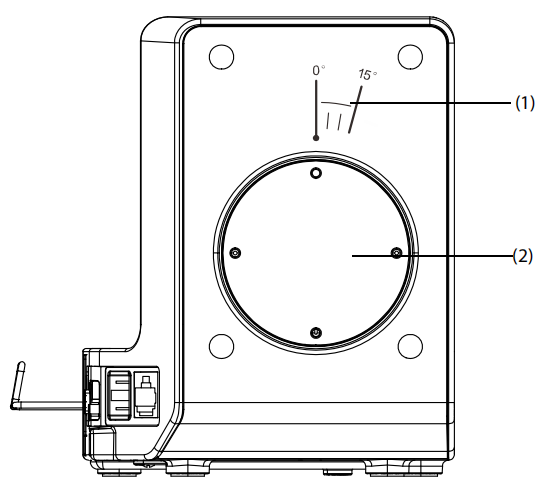

► Left View
(1) Symbol: indicates the direction and angle that Dock can rotate when Dock is fixed onto a transverse or a vertical rod.
(2) Pole mount seat: used to fix the pole mount to the Dock and then to a transverse or a vertical rod.

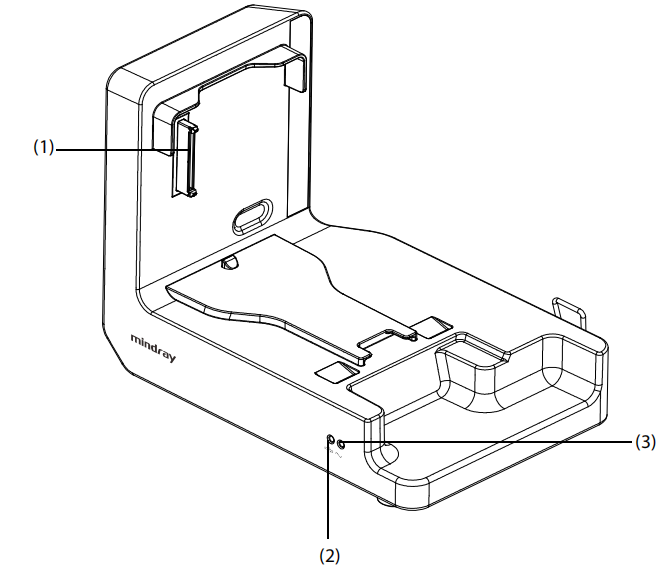

► Right View
(1) Multi-pin connector: power input and communication connector of the N1.
(2) Connection status indicator: it is on when the N1 is properly connected to the Dock.
(3) External power supply indicator: it is on when the external AC power supply is connected

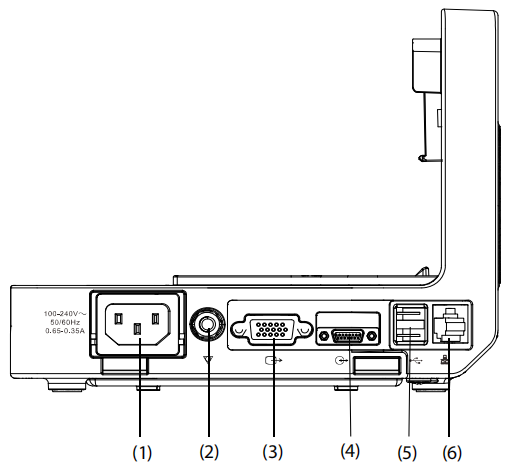

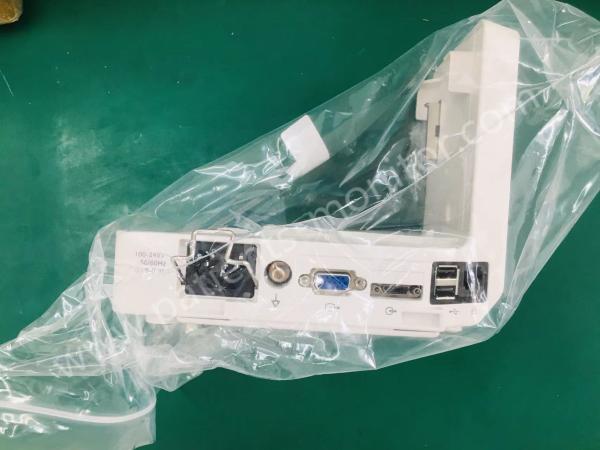

► Rear View
(1) AC Power input connector
(2) Equipotential grounding terminal: when using the monitor together with other devices, connect their equipotential grounding terminals together to eliminate the potential difference between them.
(3) VGA connector: connects the external display
(4) Host monitor connector: connects the N1 to the host monitor through a cable.
(5) USB connector: connects USB devices.
(6) Network connector: a standard RJ45 connector which connects the monitor to the CMS. It can also be used to transfer data..
► Installation

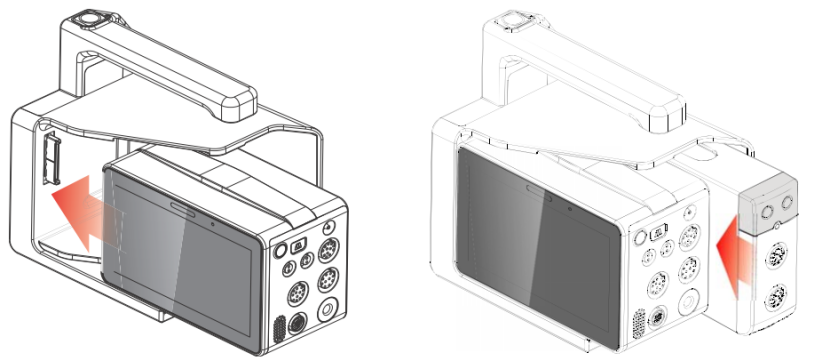

Firmly push the N1 or the external module until an audible click is heard indicating that the clip engaged the Modular Rack. To ensure that the N1 or the external module is properly connected, try to pull the N1 or the external module outward. The N1 or the external module has properly engaged the Modular Rack if it cannot be pulled out.
► Removing
1. Press and hold the latch at the bottom of the N1 or parameter module. If the external module is locked to the Modular Rack, unlock it first.
2. Pull the N1 or parameter module out as indicated.
► Specification
| Property (unit) | Operating Condition | Storage conditions |
| Temperature (°C) | 0 to 40 | -30 to 70 |
Relative humidity
(noncondensing) (%) | 5 to 95% | 5 to 95% |
| Barometric (mmHg) | 427.5 to 805.5 | 375 to 805.5 (with CO2)
120 to 805.5 (without CO2) |
