Top Panel for Edan SE-1200 Express
Edan SE-1200 Express ECG/EKG Machine Front Casing / Top Panel Medical Equipment Spare Parts
► Brief Description
Edan SE-1200 Express ECG Machine Top Panel / Front Casing
Top Panel for Edan SE-1200 Express - It is the front panel of the Edan SE-1200 Express electrocardiograph. It is made of simple plastic material and has a long service life and will not be easily damaged by knocks. There is an obvious mark "SE-1200 Express" on the front panel to indicate the model of the machine, allowing users to easily distinguish among many machines. The front panel can be equipped with a display for displaying menus and waveforms, as well as a keyboard for user-friendly operation. It is used, but will be cleaned and inspected before shipment to ensure that the appearance and performance are complete.
► Specification
| Brand | Edan |
| Product Category | ECG |
| Product Type | Spare Parts |
| Item Name | Front Casing / Top Panel |
| Patient Application | SE-1200 Express |
| Color | White |
| Condition | Used |
| Performance | Good |
| Delivery Date | 3 - 5 Working Days |
| Package | Carton |
| Payment Method | Western Union, Bank T/T, Paypal |
| Transpotation | DHL, FedEx, UPS, By Air, etc. |
► More Details

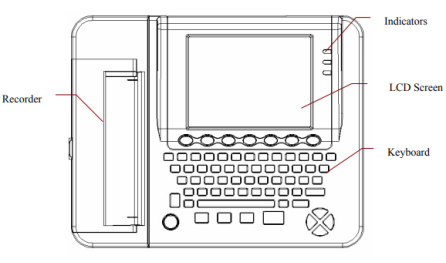

1. Top Panel
2. Front Panel
A. Mains power indicator: When the device is powered by mains, this indicator light is on.
B. Battery indicator: This indicator lights up when the device is powered by battery.
C. Battery charging indicator: This indicator lights up when the battery is charging.

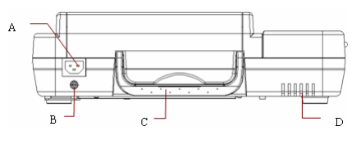

3. Rear Panel
A. Power socket
B. Potential equalizing conductor: Potential equalizing conductor provides the connection between the equipment and the equipotential equalizing busbar of the electrical installation.
C. Handle: the part for people to hold
D. Heat dissipation holes: channels for internal heat dissipation
4. Right Panel
A. Patient Cable Socket: Connects to patient cable
B. Serial port 1: Connect to PC
C. USB socket 1 (optional): standard USB socket, connect to PC
D. USB socket 2 (optional): Standard USB socket, connect USB flash drive, barcode reader or USB printer recommended by the manufacturer
E. External input/output socket: connect external signal equipment
F. Serial port 2: reserved
G. Network port: standard network port, connect to PC
The Edan SE-1200 Express ECG/EKG Machine Front Casing / Top Panel is a very important part of the ECG equipment. It can protect the internal components from damage and effectively extend the life of the Edan SE-1200 Express ECG machine.

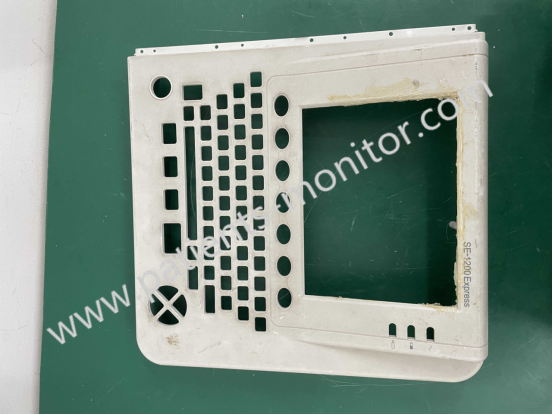

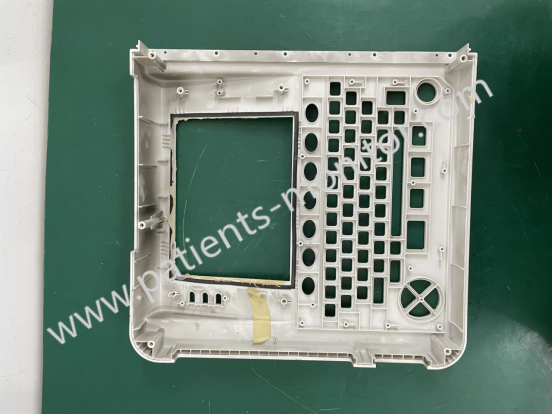

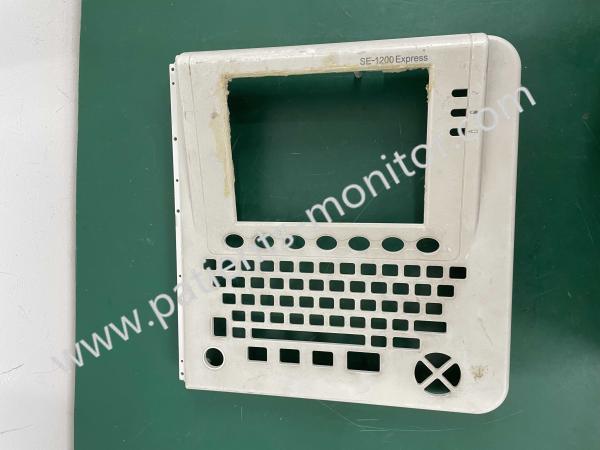

► Detailed Photos
Thanks for your interest in Edan SE-1200 Express ECG/EKG Machine Front Casing / Top Panel Medical Equipment Spare Parts, please feel free to contact me. Thank you for your time and wish you have a happy life.
